About Bijlify UNIV – II

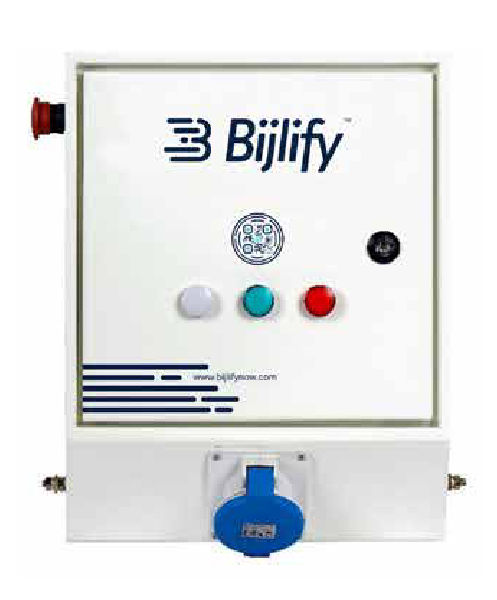

3.3kW AC Smart Charger
3.3kW AC Wallbox Charger is composed of main control unit, protection and metering.It is an intelligent AC Charger with a modular design. It requires less space which can be installed in indoor and outdoor environments and provides AC power for electric vehicles with on board charger. It is generally installed at buildings, commercial complexes, operators, EV dealers and service providers. It supports IEC60309 Industrial Power Socket.
Product Feature
- Charging protection such as short circuit, over current, Connection abnormality and emergency stop.
- Smart connectivity: GSM/GPRS.
- Stand-alone charger, easy to install.
- Supports QR code and app connectivity.
Applications for
Residential
Buildings
Commercial
Buildings, CPO
Charging Stations
(L,M,S)
EV Dealers &
Service Providers
Technical Specification
| Power Input | |
|---|---|
| Power Connection | P + N + PE |
| Input Voltage | 230 VAC±10% |
| Frequency | 50Hz±10% |
| Power Output | |
| Rated Power | 3.3kW |
| Rated Output Current | 16Amp |
| Energy Measurement Accuracy | Class 1 |
| No. of Output | 1 |
| Plug | IEC-60309 industrial socket |
| Protection | |
| Push Button | Emergency Stop Button |
| Electrical Protection | Over Current, Over / Under Voltage, Surge Protection, Short Circuit Protection, Earth-Leakage, Ground Fault |
| User Interface | |
| Status Indicator | Power ON, Charging ON and Fault |
| User Authorization | QR Code |
| Communication | |
|---|---|
| Network Connectivity | GSM / GPRS |
| Communication Protocol | HTTP / MQTT |
| Environment | |
| Operating Temperature | -5ºC to 60ºC |
| Storage Temperature | -5ºC to 70ºC |
| Humidity | 5% to 95% without condensation |
| Altitude | ≤2000m |
| Place of Installation | Indoor and Outdoor |
| Mechanical Design | |
| Shell Material | Polycarbonate |
| Ingress Protection | All weather functionality |
| Cooling | Natural Cooling |
| Dimensions (WXDXH) | 254mmx142mmx378mm |
| Installation | Wall Mounted |
*Charge Point Operators
*Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
