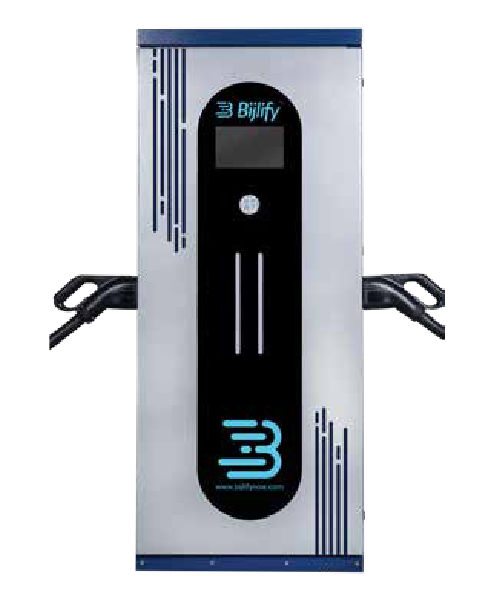

About Bijlify X’TREME – II
60kW DC Fast Charger
30kW DC Fast Charger has complete protection system which includes surge protection, residual current devices, short circuit, over/under voltage etc. The Fast charger comes equipped with network communication capabilities to connect with remote network systems and provide real-time information, such as the locations of charging stations, charging parameters and billing information. Ideal for indoor / outdoor fast charging operations
Product Feature
- Charging protection such as input over / under voltage, connection abnormality, emergency stop.
- Protection against lightning, leakage, short circuit, over current, over temperature.
- Wall or Pole mounted installation, easy to install.
- Touch screen operation interface.
- Supports IEC 61851 standard charging.
- Display – 9” TFT touch screen interface.
- Flexible smart connectivity: Ethernet, SIM based, QR Code, OCPP 1.6.
Applications for
Residential & Commercial
Spaces
EV Fleet
Operators
EV Dealers
Charging Operating
Stations (L,M,S)
EV Service Providers
Technical Specification
| Power Input | |
|---|---|
| Power Connection | 3P + N + PE |
| Input Voltage | 415 VAC±10% |
| Frequency | 50Hz±10% |
| Efficiency | ≥94% |
| Power Factor | ≥0.99 |
| Total Harmonic Factor | THD <5% |
| Power Output | |
| Output Voltage | 150V-1000V, 230V AC – 415V AC |
| Rated Power | 82kW |
| Rated Output Current | 150A DC CCS2, 32A AC Type-2 |
| No. of Output | Upto 3 connectors |
| Plug | CCS-2 / CHAdeMO / AC Type-2 |
| Protection | |
| Push Button | Emergency Stop Button |
| Electrical Protection | Over Current, Over/Under Voltage, Surge Protection, Short Circuit Protection, Ground Fault, Over Temperature |
| User Interface | |
| Display | 9” TFT Color Touch Screen |
| Status Indicator | LED Lamps for ON, Charging and Fault |
| User Authorization | App |
| Communication | |
|---|---|
| Network Connectivity | SIM based |
| Communication Protocol | OCPP v1.6 |
| Environment | |
| Operating Temperature | -20ºC to 60ºC |
| Storage Temperature | -40ºC to 70ºC |
| Humidity | 5% to 95% without condensation |
| Altitude | ≤2000m |
| Place of Installation | Indoor and Outdoor |
| Mechanical Design | |
| Shell Material | Hot-dip galvanized steel sheet |
| Ingress Protection | IP-55 |
| Cooling | Forced Cooling |
| Length of charging gun | 5m |
| Installation | Floor Mounted |
| Dimensions (WXDXH) | 750mmX450mmX1250mm |
| Length of charging gun | 5m |
| Regulation | |
| Charging Mode Standard | IEC 61851-1 Charging Mode-4 |
*Charge Point operators
*Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
