About Internal Communication System
Marine Electricals offers internal communication system on board a ship comprising of the critical components including the Automatic Telephone System (ATS), the Self Powered Telephone System (SPT), the Public Address-General Alarm System, the Sound Reception System and the Talk-Back System. These systems collectively contribute to a well-integrated and secure communication network on board.
The Automatic Telephone System
The Auto Telephone System is tailored for maritime use, offering a versatile communication solution employing Analog, Digital, or IP Telephones. This is an electronic telephone switchboard designed for robust reliability and durability to address diverse requirements both within and outside a ship. This system functions as an interface connecting the micro-computer controlled central exchange unit with various telecommunication equipment.
Features:
- Flexible choice of line capacity
- High reliability microprocessor control
- Simple installation and easy maintenance
- Conversion of pulse/tone
- Automatic main/emergency power changeover
- Add on VolP Gateway (max. 60 lines) option
Technical Specifications:
- Type Approval by DNV GL, RINA and CCS
The Self Powered Telephone System (SPT)
The Self Powered Telephone System (SPT) serves as an emergency communication system, relying on internal energy generation for short-term operation and seamlessly switching to battery less mode during mains power failure.
Features:
- Easy operation
- Simple installation and easy maintenance
- Communication is available for 10-15 min with one-time charging
- Enable to recharge while system is operating
- Systems available in three types namely – Direct calling, Master & Slave calling (1:4) and Mutual selective calling (12 lines, 24 lines)
The Public Address-General Alarm System
The Public Address-General Alarm System ensures compliance with maritime regulations, delivering clear announcements, alarms, and entertainment distribution across vessels. It is designed for general announcing with advanced technology.
Features:
- Modular design and flexible configuration
- Flexible choice of output power and installation space
- Reliable and durable performance
- Simple installation and easy maintenance
- Convenient control with microprocessor and diode matrix
- Automatic main/emergency power changeover
- Automatic main/sub amplifier changeover in dual system
Technical Specifications:
- Complies with IMO regulation 111/6.5 & Res. MSC.47(66) performance standards
- Conforms to SOLAS, IMO and IEC regulations
The Sound Reception System
The Sound Reception System detects foghorn signals from other vessels, enhancing navigational safety. Sound Reception System is use Onboard one man operated closed bridge class ships.
Features:
For Main Control and Display Unit (SRM-141) which is easy to operate
- Has SRR-1 42 interface connection along with built-in loudspeaker and Wide function and an 8 Direction indicator.
- Features Loudspeaker volume control and power on/off along with Direction and activity indicator LED’s dimming control, 3 Mute circuits, Self-test functionality
- Connection for power supply DC24V and AC1 10- 220V
- External power fault output (dry contact) connection
For Microphone Unit (SRR-142)
- Simple installation with only one microphone unit
- Condenser microphone for very good reception in the required audio band
- Digital signal processing algorithms
- Active noise rejection of in-band noise

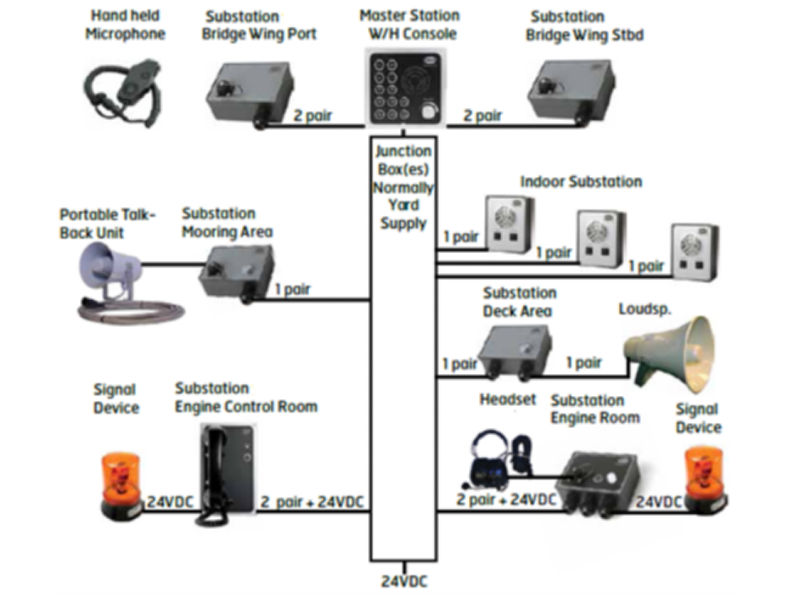

Talk-Back System
The Talk-Back System offers versatile communication options, featuring central units and substations suitable for different environments on marine vessels and the capability to function as an emergency Public Address system when needed.
Features:
- Certified by various classification societies
- Meeting Solas requirements
- Tailor made based on type of ships & specifications
