About Marine LED Lights
Marine Electricals offers a state-of-the-art lighting range through its subsidiary McGeoch Marine Electrical Pvt. Ltd. The company is committed to retaining its “best in the class” status for engineering and light fittings supply for the maritime industry. McGeoch Marine specializes in the fields of design, engineering, manufacture, project management and illumination solutions provision for marine vessels and submarines with its wide range of specialised lights, lighting fixtures and switchgear. The company has successfully engineered and supplied the said products for many of the world’s frigates, destroyers, off-shore patrol vehicles, missile boats in project equipments.
McGeoch Marine offers below product range for maritime industry.
AEL (Automatic Emergency Lantern)
The design of the Automatic Emergency lantern is catered for trouble free operation under the most adverse environmental and marine conditions. This is a Naval Surface mounted AEL (LED) Light Available with 1.2 Watt LED Arrays.
Features:
- Housing & Cover: Usually available with Al. Die casted body with Epoxy Polyester powder coated LA Grey/Silver Grey surface finish. Can also be customized on requirement
- Control Gear: Control gear unit consists of Electronic Power Supply
- Mains Supply Voltage: 15-127-230 Volt AC Single Phase
- Ingress Protection: IP 67
- Lux Level: > 40 Lux (Values measured at a perpendicular distance of 01 Mtr.)
- Installation: Surface mounted type
- Optics: Polycarbonate Diffuser
Technical Specifications:
- SOTR: In compliance to SOTRs EED-50-28
- IP 65: Comply to Std IS/IEC:60529:2001
- EMI / EMC: Comply to MIL-STD-461E Standard
- Environmental Test: Comply to JSS55555 as per SOTR
Applications:
- Functions as indicator in compartments and passageways to show exit routes from closed spaces to the weather deck.
- Mark machinery spaces and workshops to prevent contact with moving machinery.
- At exits from galleys, under galley canopies and associated areas to define clearly the nearest escape route, avoiding hot equipment.
LED Flush Mounted Light / LED Cabin Light
Flush mount lighting fixtures are indoor lighting fixtures that supposedly are fixed to the ceilings. This is a Naval Surface LED Flush Mounted Light with Polycarbonate diffuser used to light cabins etc in maritime industry.
Features:
- Housing & Cover: Al. Die casted body with Epoxy Polyester powder coated LA Grey / Silver Grey surface finish. (Can also be customized on requirement.)
- Control Gear: Control gear unit consists of Electronic Power Supply
- Mains Supply Voltage: 110~230 Volt / 50-60 Hz AC Single Phase
- Ingress Protection: IP 56
- Lux Level: >200 Lux (Value indicated is Average Lux level in a 01 Sq. Meter planer area & measured at a perpendicular distance at 1 Mtr. from Light Source)
- Installation: Surface mounted type.
- Optics: White Diffuser
Technical Specifications:
- SOTR: In compliance to SOTRs EED-50-33 (R1)
- IP 56: Comply to Std IS/IEC: 60529:2001
- EMI / EMC: Comply to MIL-STD-461E Standard
- Environmental Test: Comply to JSS55555 as per SOTR
Applications:
- Cabin Room Illumination etc.

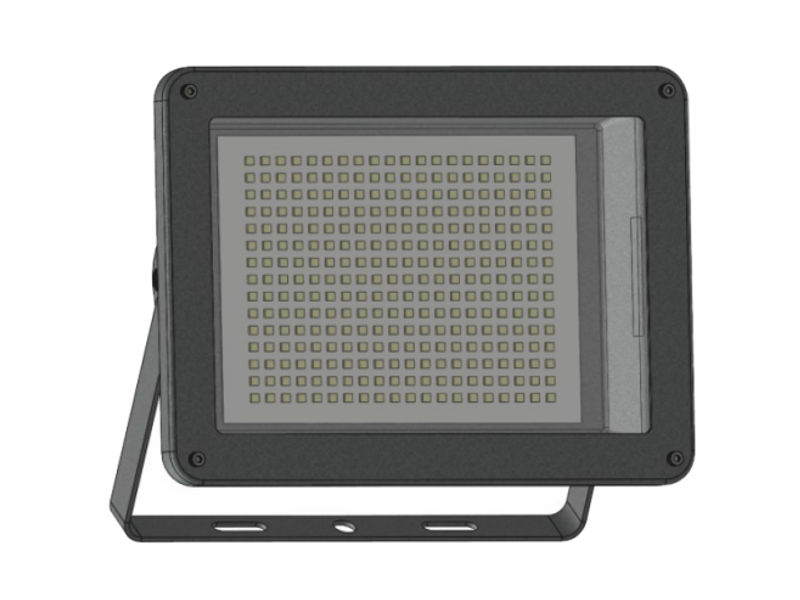

LED Flood Light / LED Hanger Light
LED luminaires that are directed with amiable beams and project light onto a specific area, or objects are known as LED Flood Lights. Employing a LED floodlight for home illumination is a fundamental component of both internal as well as external lighting solutions. Marine’s Naval Surface mounted LED Flood Light has Polycarbonate diffuser is a regular fixture in various maritime operations.
Features:
- Housing & Cover: Al. Die casted body with Epoxy Polyester powder coated LA Grey/Silver Grey surface finish. (Can also be customized on requirement.)
- Control Gear: Control gear unit consists of Electronic Power Supply.
- Mains Supply Voltage: 110~230 Volt / 50-60 Hz AC Single Phase
- Ingress Protection: IP 56
- Lux Level: > 300 Lux (Value indicated is Average Lux level in a 01 Sq. Meter planer area & measured at a perpendicular distance at 5 Mtr. from Light Source)
- Installation: Surface mounted type.
- Optics: Clear Diffuser
Technical Specifications:
- SOTR: In compliance to SOTRs EED-50-33 (R1)
- IP 56: Comply to Std IS/IEC: 60529:2001
- EMI / EMC: Comply to MIL-STD-461E Standard
- Environmental Test: Comply to JSS55555 as per SOTR
Applications:
- For Machinery Compartment, Hanger Area Illumination, etc.
LED Pendant Light
LED pendant lights designed for maritime industry deliver robust and waterproof illumination suitable for boats and maritime settings. These hanging fixtures are built to endure challenging conditions, ensuring focused and efficient lighting on ships or docks. This is a Naval Surface mounted LED Pendant Light with Polycarbonate diffuser.
Features:
- Housing & Cover: Al. Die casted body with Epoxy Polyester powder coated LA Grey / Silver Grey surface finish. (Can also be customized on requirement.)
- Control Gear: Control gear unit consists of Electronic Power Supply.
- Mains Supply Voltage: 110~230 Volt / 50-60 Hz AC Single Phase
- Optional: 1 no Shock Mount can be supplied optional if required as extra.
- Installation: Surface mounted type.
- Optics: Polycarbonate Diffuser
- Ingress Protection: IP 56
- Lux Level: > 125 Lux (Value indicated is Average Lux level in a 01 Sq. Meter planer area & measured at a perpendicular distance at 1 Mtr. from Light Source)
Technical Specifications:
- SOTR: In compliance to SOTRs EED-50-33 (R1)
- IP 56: Comply to Std IS/IEC: 60529:2001
- EMI / EMC: Comply to MIL-STD-461E Standard
- Environmental Test: Comply to JSS55555
Applications:
- For Gangway, Passage, Compartments, Engine Room Illumination, etc.
Explosion Proof LED Pendant Light
Explosion proof lighting refers to lighting fixtures that are able to contain sparks that could potentially ignite the flammable and explosive gases in the atmosphere. This is a sturdier version of our Naval Surface mounted LED Pendant Light with Polycarbonate diffuser.
Features:
- Housing & Cover: Al. Die casted body with Epoxy Polyester powder coated LA Grey / Silver Grey surface finish. (Can also be customized on requirement.)
- Control Gear: Control gear unit consists of Electronic Power Supply.
- Mains Supply Voltage: 110~230 Volt / 50-60 Hz AC Single Phase
- Installation: Surface mounted type.
- Optics: Polycarbonate Diffuser
- Ingress Protection: IP 56
- Lux Level: > 125 Lux (Value indicated is Average Lux level in a 01 Sq. Meter planer area & measured at a perpendicular distance at 1 Mtr. from Light Source)
Technical Specifications:
- SOTR: In compliance to SOTRs EED-50-33 (R1)
- IP 56: Comply to Std IS/IEC: 60529:2001
- EMI / EMC: Comply to MIL-STD-461E Standard
- Environmental Test: Comply to JSS55555
Applications:
- For Magazine Compartments, Paint stores, Explosive Atmospheric Area Illuminations, etc.
Red LED Pendant Light
This is yet another variant of our Naval Surface mounted LED Pendant Light with Polycarbonate diffuser.
Features:
- Housing & Cover: Al. Die casted body with Epoxy Polyester powder coated LA Grey / Silver Grey surface finish. (Can also be customized on requirement.)
- Control Gear: Control gear unit consists of Electronic Power Supply
- Mains Supply Voltage: 110~230 Volt / 50-60 Hz AC Single Phase
- Optional: 1 no Shock Mount can be supplied optional if required as extra
- Installation: Surface mounted type
- Optics: Red Polycarbonate Diffuser
- Ingress Protection: IP 56
- Lux Level: > 20 Lux (Value indicated is Average Lux level in a 01 Sq. Meter planer area & measured at a perpendicular distance at 1 Mtr. from Light Source)
Technical Specifications:
- SOTR: In compliance to SOTRs EED-50-33 (R1)
- IP 56: Comply with Std IS/IEC: 60529:2001
- EMI / EMC: Comply to MIL-STD-461E Standard
- Environmental Test: Comply to JSS55555
Applications:
- For Gangway, Passage, Compartments, Engine Room, Red Light Illumination, for Darken Ship etc.
LED Weather Deck Light
Durable LED weather deck lights are specifically crafted for maritime applications, offering strong illumination on ship decks, particularly in adverse weather conditions. This is our Naval bulk head mounted LED Weather Deck Light with Polycarbonate diffuser.
Features:
- Housing & Cover: Al. Die casted body with Epoxy Polyester powder coated LA Grey / Silver Grey surface finish. (Can also be customized on requirement.)
- Control Gear: Control gear unit consists of Electronic Power Supply
- Mains Supply Voltage: 110~230 Volt / 50-60 Hz AC Single Phase
- Installation: Bulk Head mounted type
- Optics: Polycarbonate Diffuser
- Ingress Protection: IP 56 / IP 67
- Lux Level: > 100 Lux (Value indicated is Average Lux level in a 01 Sq. Meter planer area & measured at a perpendicular distance at 01 Mtr. from Light Source)
Technical Specifications:
- SOTR: In compliance to SOTRs EED-50-33 (R1)
- IP 56: Comply to Std IS/IEC: 60529:2001
- EMI / EMC: Comply to MIL-STD-461E Standard
- Environmental Test: Comply to JSS55555
Applications:
- For Weather Deck Illumination
LED Bilge Light
LED Bilge Lights are specialized fixtures meticulously crafted to provide illumination in the lowest compartment, known as the bilge area. These lights serve the purpose of assisting in inspections, maintenance, and emergency situations. This is a Naval Surface mounted LED Bilge Light with Polycarbonate diffuser.
Features:
- Housing & Cover: Al. Die casted body with Epoxy Polyester powder coated LA Grey / Silver Grey surface finish. (Can also be customized on requirement.)
- Control Gear: Control gear unit consists of Electronic Power Supply
- Mains Supply Voltage: 110~230 Volt / 50-60 Hz AC Single Phase
- Installation: Surface mounted type
- Optics: Polycarbonate Diffuser
- Ingress Protection: IP 67
- Lux Level: > 100 Lux (Value indicated is Average Lux level in a 01 Sq. Meter planer area & measured at a perpendicular distance at 01 Mtr. from Light Source)
Technical Specifications:
- SOTR: In compliance to SOTRs EED-50-33 (R1)
- IP 56: Comply to Std IS/IEC: 60529:2001
- EMI / EMC: Comply to MIL-STD-461E Standard
- Environmental Test: Comply to JSS55555
Applications:
- For Bilge area Illumination
LED Tube Light
This is a Naval Surface mounted LED Tube Light with Polycarbonate diffuser. This has replaced the traditional tubelights in maritime industry as they offer added durability and stability of operation in rough working conditions.
Features:
- Housing & Cover: Al. Die casted body with Epoxy Polyester powder coated LA Grey / Silver Grey surface finish. (Can also be customized on requirement.)
- Control Gear: Control gear unit consists of Electronic Power Supply
- Mains Supply Voltage: 110~230 Volt / 50-60 Hz AC Single Phase
- Optional: 2 nos Shock Mount can be supplied optional if required as extra
- Installation: Surface mounted type
- Optics: Polycarbonate Diffuser
- Ingress Protection: IP 56
- Lux Level: > 200 Lux (Value indicated is Average Lux level in a 01 Sq. Meter planer area & measured at a perpendicular distance at 01 Mtr. from Light Source)
Technical Specifications:
- SOTR: In compliance to SOTRs EED-50-33 (R1)
- IP 56: Comply to Std IS/IEC: 60529:2001
- EMI / EMC: Comply to MIL-STD-461E Standard
- Environmental Test: Comply to JSS55555
Applications:
- For Gangway, Passage, Compartments, Engine Room Illumination, etc.
LED Bunk Light
LED bunk lights are compact, energy-efficient lighting fixtures designed for confined spaces like bunk beds, boats, or RVs. This is a Naval Surface mounted LED Engine Room Light with Polycarbonate diffuser.
Features:
- Housing & Cover: Mild Steel body with Epoxy Polyester powder coated RAL 9010 surface finish. (Can also be customized on requirement.)
- Control Gear: Control gear unit consists of Electronic Power Supply
- Mains Supply Voltage: 110~230 Volt / 50-60 Hz AC Single Phase
- Installation: Recess mounted.
- Optics: Polycarbonate Diffuser
- Ingress Protection: IP 20
- Lux Level: > 20 Lux (Value indicated is measured at a perpendicular distance at 01 Mtr. from Light Source)
Technical Specifications:
- SOTR: In compliance to SOTRs EED-50-33 (R1)
- IP 56: Comply to Std IS/IEC: 60529:2001
- EMI / EMC: Comply to MIL-STD-461E Standard
- Environmental Test: Comply to JSS55555
Applications:
- Bunk Bed
LED Engine Room Light (Ranvijay Class)
This is a Naval Surface mounted LED Engine Room Light with Polycarbonate diffuser.
Features:
- Housing & Cover: Al. Die casted body with Epoxy Polyester powder coated LA Grey / Silver Grey surface finish. (Can also be customized on requirement.)
- Control Gear: Control gear unit consists of Electronic Power Supply
- Mains Supply Voltage: 110~230 Volt / 50-60 Hz AC Single Phase
- Optional: 1 no Shock Mount can be supplied optional if required as extra
- Installation: Surface Mounted type
- Optics: Polycarbonate Diffuser
- Ingress Protection: IP 56
- Lux Level: > 125 Lux (Value indicated is Average Lux level in a 01 Sq. Meter planer area & measured at a perpendicular distance of 01 Mtr. from the light source.)
Technical Specifications:
- SOTR: In compliance to SOTRs EED-50-33 (R1)
- IP 56: Comply to Std IS/IEC: 60529:2001
- EMI / EMC: Comply to MIL-STD-461E Standard
- Environmental Test: Comply to JSS55555
Applications:
- For Engine Room Illumination, etc.
